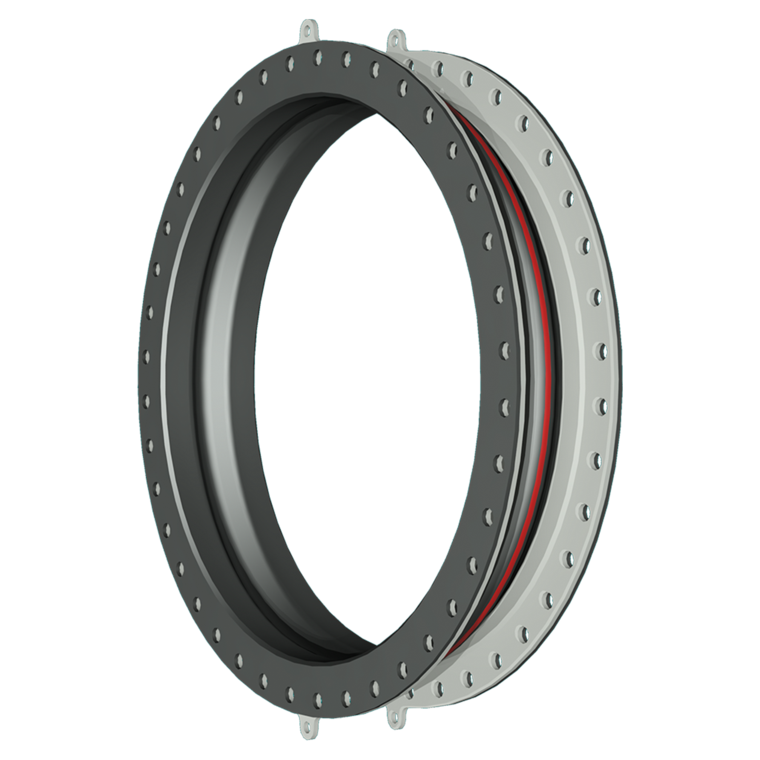

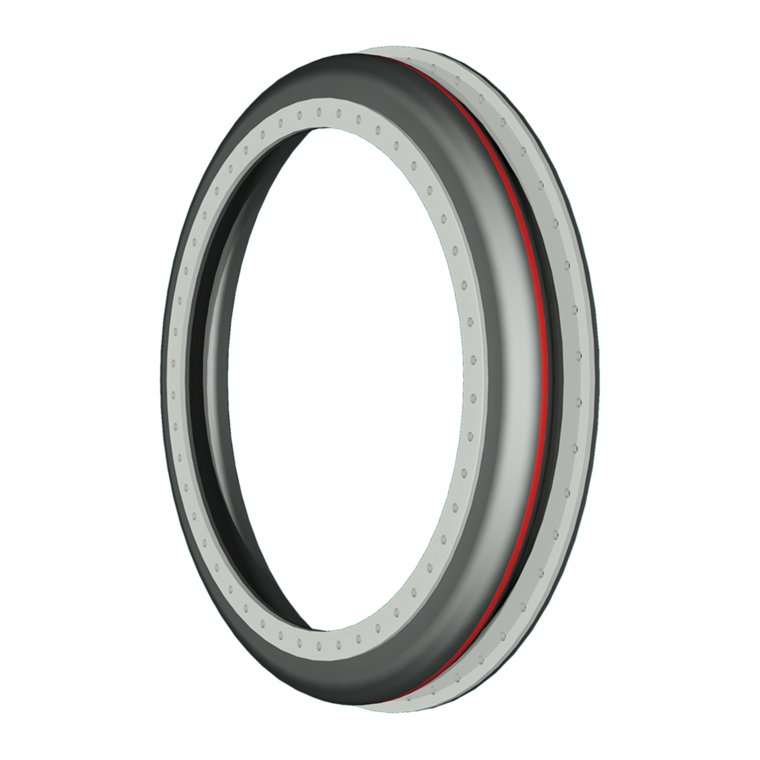

Universal expansion joints are installed in piping systems that are anchored on both sides of the joint. This construction represents the most cost-effective arrangement when used in rigid piping systems with main anchors and numerous guides at specific spacing. They come as cylindrical, single, or multiple arch expansion joints with full faced rubber flanges, swivel flanges or as slip-on sleeves.
200 to 4,000 mm

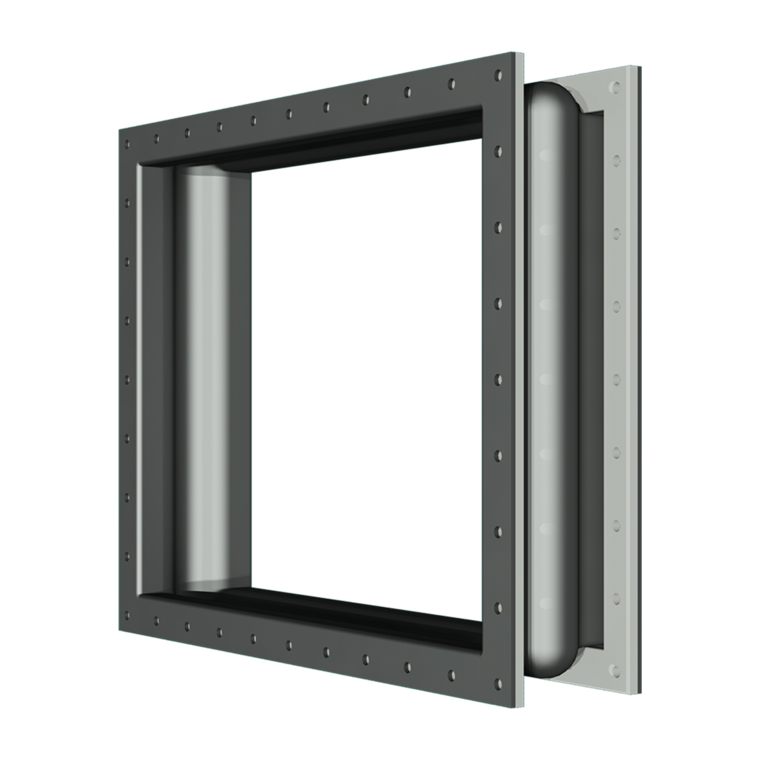

6,000 x 3,000 mm
standard 150 to 250 mm
up to 2.50 bar
with external pressure stability
up to 200°C
Flange standard
DIN
, EN
, ANSI
, AWWA
, BS
, JIS
or customized
up to 1.50 bar
up to 140°C

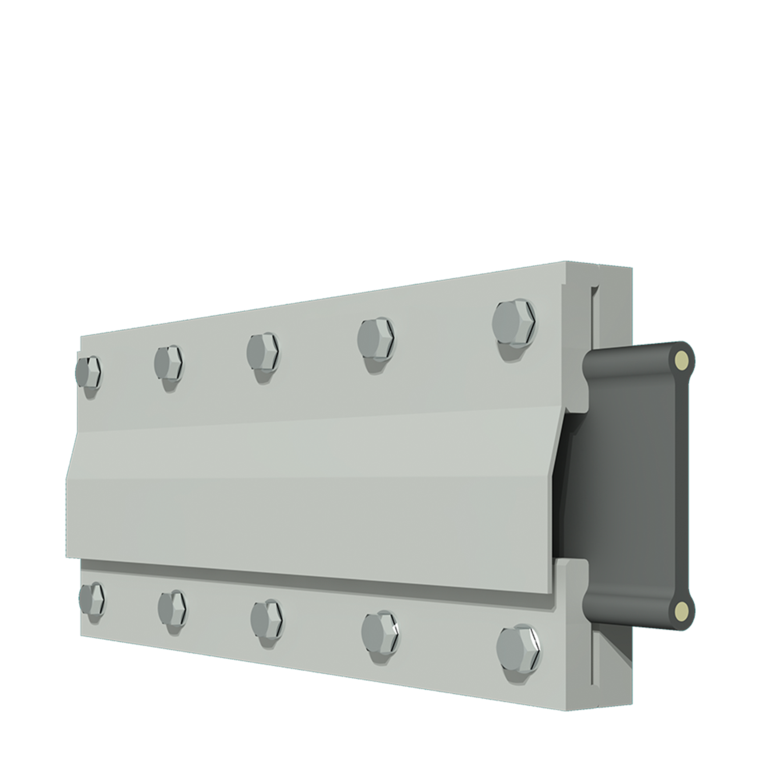

clamped fixing
custom face-to-face
up to 0.25 bar
up to 400°C

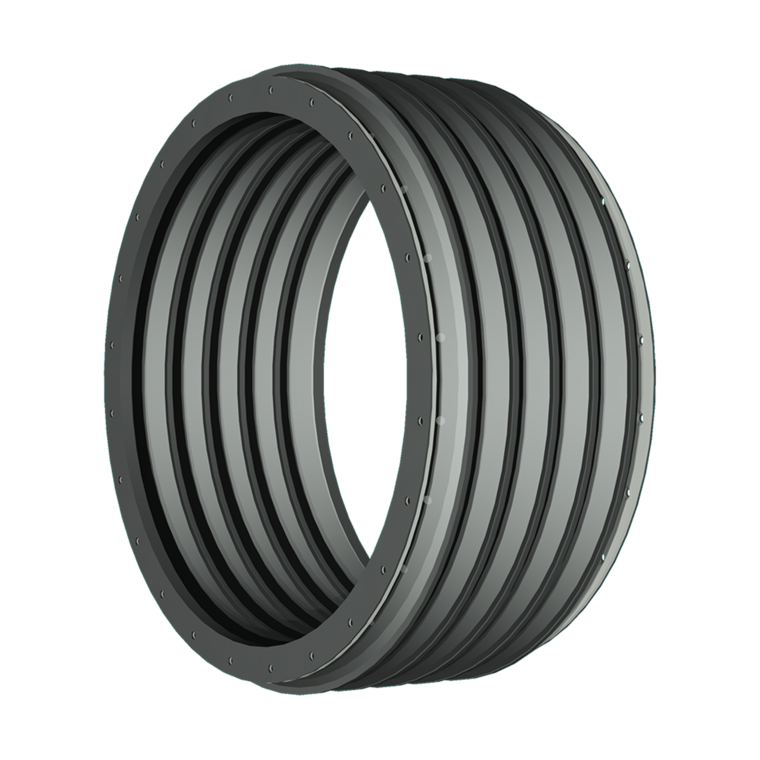

self-sealing flanges with single or multi-part backing flanges
100 to 4,000 mm
up to 200°C
sleeve ends or flanges
