Models

GU100

Straight ducting expansion joint from elastomer or multilayer fabrics

Technical data
Contact ditec

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GU100

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GU110

Single- or multi-arch ducting expansion joint from elastomer or multilayer fabrics

Technical data
Contact ditec

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GU110

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GB100

Straight ducting expansion joint from elastomer or multilayer fabrics

Technical data
Contact ditec

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GB100

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

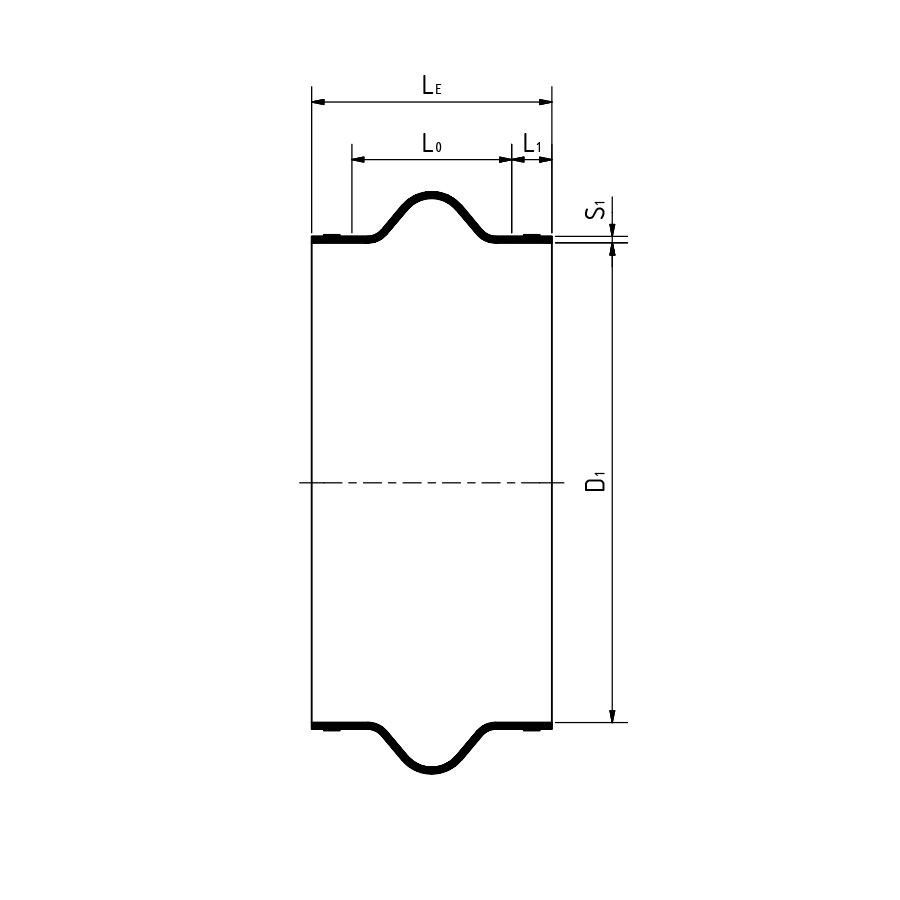

GB110

Single- or multi-arch ducting expansion joint from elastomer or multilayer fabrics

Technical data
Contact ditec

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability

GB110

round, rectangular or oval
duct cross-section
custom face-to-face up to ±0.25 bar up to 400°C axial, lateral and angular movement capability
Technical data


Inquiry

GB200

Straight ducting expansion joint from elastomer or multilayer fabrics on duct angles

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 500°C axial, lateral and angular movement capability

GB200

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 500°C axial, lateral and angular movement capability

GB210

Single- or multi-arch ducting expansions joint from elastomer or multilayer fabrics on duct angles

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 500°C axial, lateral and angular movement capability

GB210

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 500°C axial, lateral and angular movement capability

GB300

Straight ducting expansion joint from elastomer or multilayer fabrics on duct angles with pre-insulation bolster

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 1,200°C axial, lateral and angular movement capability

GB300

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 1,200°C axial, lateral and angular movement capability

GB310

Single- or multi-arch ducting expansion joint from elastomer or multilayer fabrics on duct angles with pre-insulation bolster

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 1,200°C axial, lateral and angular movement capability

GB310

round or rectangular
duct cross-section
custom face-to-face up to ±0.25 bar up to 1,200°C axial, lateral and angular movement capability

BGS600

Smoke extraction fan expansion joint
with self-sealing full faced flanges


Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa 120 min smoke
extraction at 600°C
axial and lateral movement capability

BGS600

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa 120 min smoke
extraction at 600°C
axial and lateral movement capability

BGK611

Smoke extraction single arch ducting expansion joint
with vacuum ring and self-sealing full faced flanges

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa 120 min smoke
extraction at 600°C
axial and lateral movement capability

BGK611

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa 120 min smoke
extraction at 600°C
axial and lateral movement capability

LT200

Fan or ducting expansion joint
with self-sealing full faced flanges for ventilation and air conditioning systems

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa -60 to +200°C
peaks up to 250°C
axial and lateral movement capability

LT200

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa -60 to +200°C
peaks up to 250°C
axial and lateral movement capability
Technical data


Inquiry

EX100

Conductive fan or ducting expansion joint
with explosion protection and self-sealing full faced flanges

Technical data
Contact ditec

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa -30 to +100°C axial and lateral movement capability

EX100

round or rectangular
duct cross-section
custom face-to-face up to ±15,000 Pa -30 to +100°C axial and lateral movement capability
Technical data


Inquiry

We will gladly advise you

Your inquiry to us

Of course, we are also available to you as a contact partner for individual requirements and applications.
This also applies to seemingly impossible cases - whether complex designs, special operating conditions
or extraordinary dimensions. Please contact us.
